Gearbox & Drive
Please find below a schedule of available gearboxes for our Craftsmanmarine Engine range.
All Enquiries to sales@craftsmanmarine.co

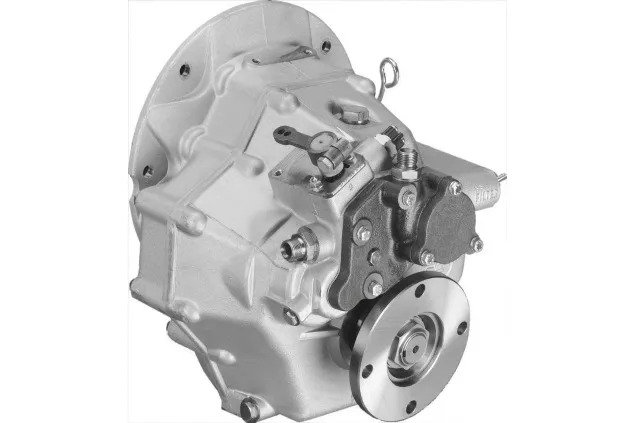

Technodrive TM345A
Please contact us for availability & pricing information.
Craftsmanmarine Recommendations :
*CM4.52
*Cm4.65
The TM345A marine transmission has an aluminium alloy housing and is equipped with hydraulically activated multiple disk clutches. The clutches and gears have been designed to transmit full power, with the same transmission ratio in forward and reverse. The 8ยบ angle of depression of the output shaft makes it possible to correctly install the marine engine-transmission set on planing or semi-displacement hulls.
Reduction ratios
Forward / Reverse, 1.54:1.54:1, 2.00:1, 2.00:1, 2.47:1, 2.47:1
All Reductions are available on a 45mm & 75mm Shaft (L)

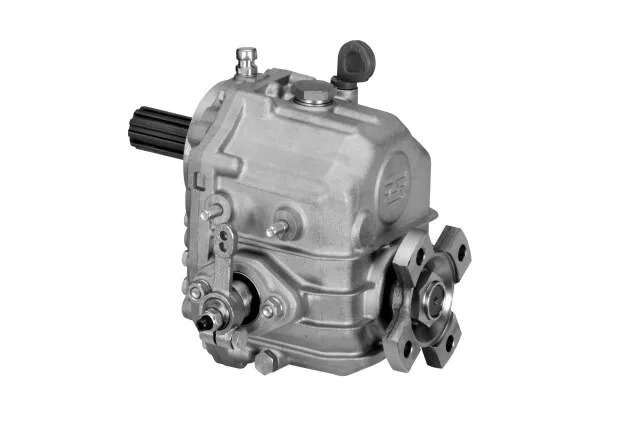

Technodrive TMC40P
Please contact us for availability & pricing information.
Craftsmanmarine recommendations :
*CM 2.16 16hp
*CM 3.27 27hp
The Technodrive TMC40P marine transmission is equipped with conical clutches, mechanically operated and managed through a servo system. The gears, meticulously designed to ensure a quiet operation, are complemented with oversize bearings that guarantee super durability and optimal performance for marine based engines.
Reduction Ratios :
F/R - 1.45:1, 2.13:1, 2.00:1, 2.13:1, 2.60:1, 2.13:1
All Reductions are available on a 45mm & 75mm Shaft (L)

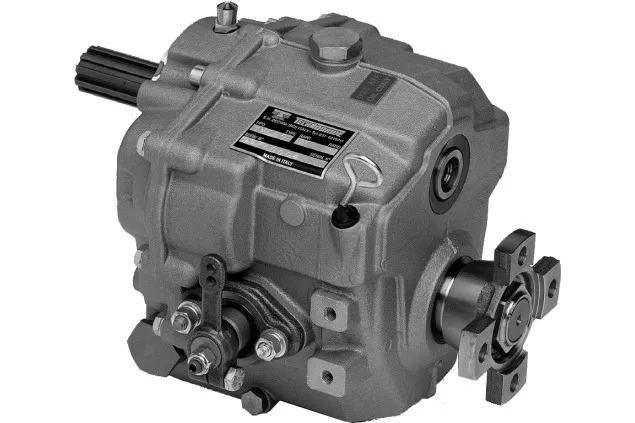

Technodrive TMC60P
Please contact us for availability & pricing information.
Craftsmanmarine Recommendations :
*CM4.42 42hp
*CM4.52 52hp
The Technodrive TMC60P transmission for marine engines, designed for smooth operation. Equipped with mechanically operated conical clutchs, and driven by a servo system. This gearbox is very suitable for twin engine applications.
Reduction Ratios :
F/R - 1.55:1,2.00:1, 2.00:1, 2.00:1, 2.45:1, 2.45:1, 2.83:1, 2.45:1
All Reductions are available on a 45mm & 75mm Shaft (L)
